Mount grades: HD-800 series(Hai Damp®)

SPEC

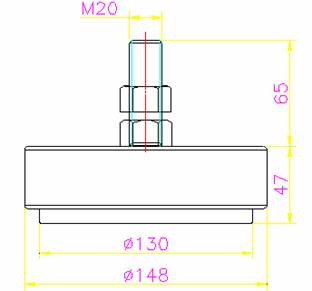

Model No. : R-130 N

Mount grades-R-130 N

Description :

Loading： 2600 kg
Rubber hardness： 80~85 Shore A
Remark： Suitable for: weight 6~10 MT machine

Application :

※Characteristics of vibration mounts/pads(HD-800/HD-600)(Hai Damp®) :

Oil resistant: will not swell in contact with most greases, lubricants, gasoline and diesel fuels.
Vibration absoption effect: high damping ratio(tanδ> 26% )
Durability: over 10 years service life under normal conditions.

Mount grades-R-130 N

Product comparison :

Spec.	R-185 N	R-130 N	R-110 N	R-90
Loading	5000 kg	2600 kg	1900 kg	1200 kg
Rubber hardness	80~85 Shore A	80~85 Shore A	80~85 Shore A	80~85 Shore A
Remark	Suitable for: weight over 10 MT machine	Suitable for: weight 6~10 MT machine	Suitable for: weight 2~6 MT machine	Suitable for: weight 1 ~ 2 MT machine

Spec.	R-70	R-M75	R-M65	R-M30
Loading	600 kg	850 kg	600 kg	10~100 kg
Rubber hardness	80~85 Shore A	80~85 Shore A	80~85 Shore A	50~95 Shore A
Remark	Suitable for: weight below 1MT machine	Suitable for: heavy motor & compressor	Suiteable for: light motor & compressor	Suiteable for: small motor & compressor
